AD7710ANZ

Product Summary

The AD7710ANZ is a Signal Conditioning ADC. The AD7710ANZ is a complete analog front end for low frequency measurement applications. The device accepts low level signals directly from a strain gage or transducer and outputs a serial digital word. It employs a sigma-delta conversion technique to realize up to 24 bits of no missing codes performance. The input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The applications of the AD7710ANZ is a Weigh Scales, Thermocouples, Process Control, Smart Transmitters, Chromatography.

Parametrics

AD7710ANZ absolute maximum ratings: (1)AVDDto DVDD: -0.3 V to +12 V; (2)AVDDto VSS: -0.3 V to +12 V; (3)AVDDto AGND: -0.3 V to +12 V; (4)AVDDto DGND: -0.3 V to +12 V; (5)DVDDto AGND: -0.3 V to +6 V; (6)DVDDto DGND: -0.3 V to +6 V; (7)VSSto AGND: +0.3 V to –6 V; (8)VSSto DGND: +0.3 V to –6 V; (9)Analog Input Voltage to AGND: VSS -0.3 V to AVDD +0.3 V; (10)Reference Input Voltage to AGND: VSS -0.3 V to AVDD +0.3 V; (11)REF OUT to AGND: -0.3 V to AVDD; (12)Digital Input Voltage to DGND: -0.3 V to AVDD+ 0.3 V; (13)Digital Output Voltage to DGND: -0.3 V to DVDD+ 0.3 V; (14)Operating Temperature Range, Commercial (A Version): -40℃ to +85℃; Extended (S Version): -55℃ to +125℃; (15)Storage Temperature Range: -65℃ to +150℃; (16)Lead Temperature (Soldering, 10 secs): +300℃; (17)Power Dissipation (Any Package) to +75℃: 450 mW; (18)Derates Above +75℃: 6 mW/℃.

Features

AD7710ANZ features: (1)Charge Balancing ADC, 24 Bits No Missing Codes; ±0.0015% Nonlinearity; (2)Two-Channel Programmable Gain Front End, Gains from 1 to 128; Differential Inputs; (3)Low-Pass Filter with Programmable Filter Cutoffs; (4)Ability to Read/Write Calibration Coefficients; (5)Bidirectional Microcontroller Serial Interface; (6)Internal/External Reference Option; (7)Single or Dual Supply Operation; (8)Low Power (25 mW typ) with Power-Down Mode (7 mW typ).

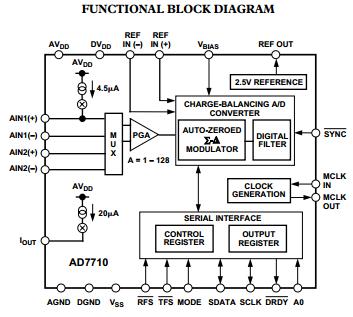

Diagrams
